Series 1

The Series 1 plant mounting solution is ideal for low profile installations.

Design

  • Sleek low profile design – generations ahead of conventional structural steel platforms.
  • Unique design distributes the load evenly, reducing the structural requirements of the roof.
  • All aluminium components with stainless steel fixings – backed by a 20 year warranty.
  • Live load rated to 2.5 kPa
  • Super lightweight 14 kg / m2
  • Complies to BS EN 516 2006 and BS EN 1090-3 2008

Versatile

  • Penetration free making placement and position on the roof flexible.
  • Configurable in 600mm increment sizes in width and length to suit your requirements.
  • Pitch is configurable to suit the roof requirement
  • The lightweight aluminium design makes it easy for carrying, craning and assembly.

Speed

  • Our agile systems mean that product has a short lead time as many of the components are available off-the-shelf.
  • Kit form allows Series 1 to be assembled with our easy to follow installation manual.
  • Take advantage of our approved installer network for an efficient and stress-free installation.

Mounting Tape Options

The product is supplied with either Neoprene Foam Rubber Tape or VHB Foam Tape applied to the underside of the frame depending on whether the system is to be adhered to the roof surface or not.

SPECIFICATION REQUIREMENTS

  • Series 1 platform system by Configured Platforms Ltd
  • Roof pitch or gradient.
  • Length (along roof) and width (down roof) whilst allowing sufficient area around the equipment for access and maintenance.
  • Surround treatment to front, rear, left and/or right.
  • Height of screen and screen type if required.
  • Position or quantity of access doors or gaps if required

Surround Type Choice

Each of these surround options can be provided to any or all of the 4 sides of the Series 1 Platform in 600mm increments.

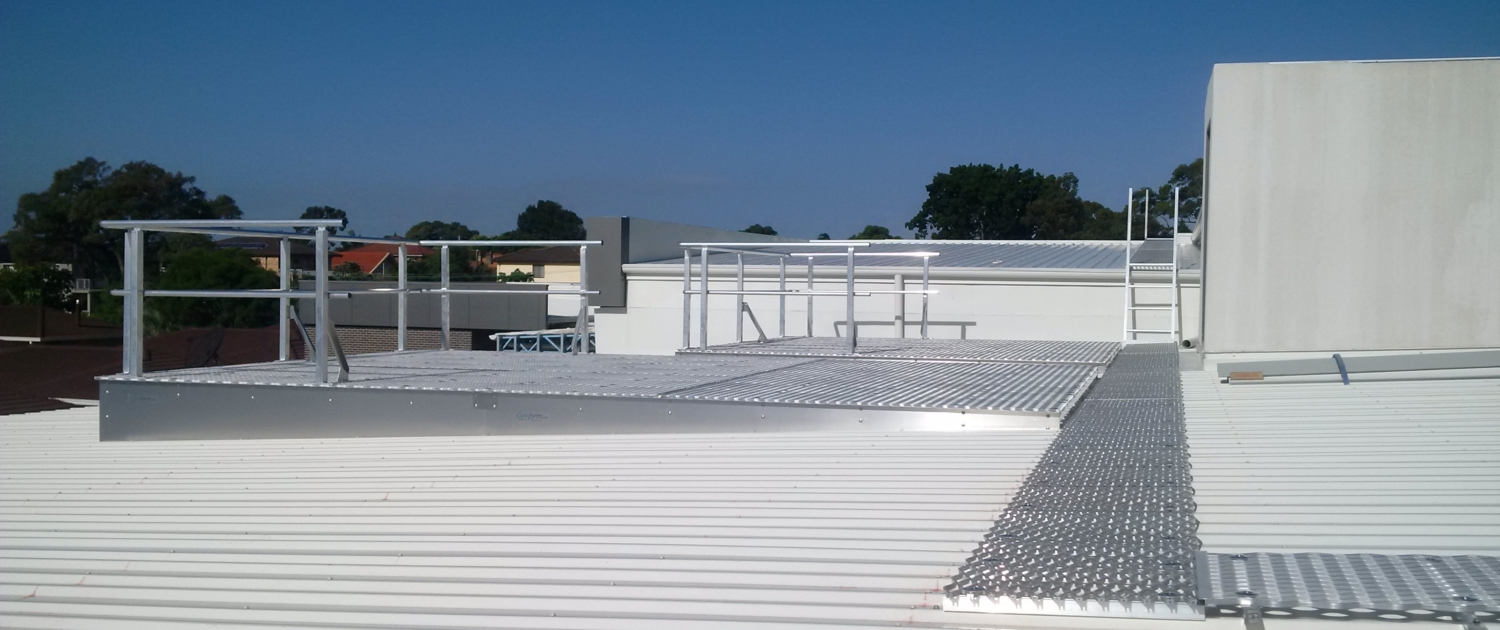

  • Guardrail – For edge protection where any platform sides are higher than 300mm from the adjacent roof surface.
  • Standard Screen Wall – For aesthetic screening of the plant, equipment and ductwork.
  • Soundshield – For aesthetic screening and acoustic attenuation by reflection.
  • Peacemaker – For aesthetic screening and acoustic attenuation by absorption.
  • Acoustic+ – For aesthetic screening and acoustic attenuation by reflection and absorption.
